Mechanical Specifications

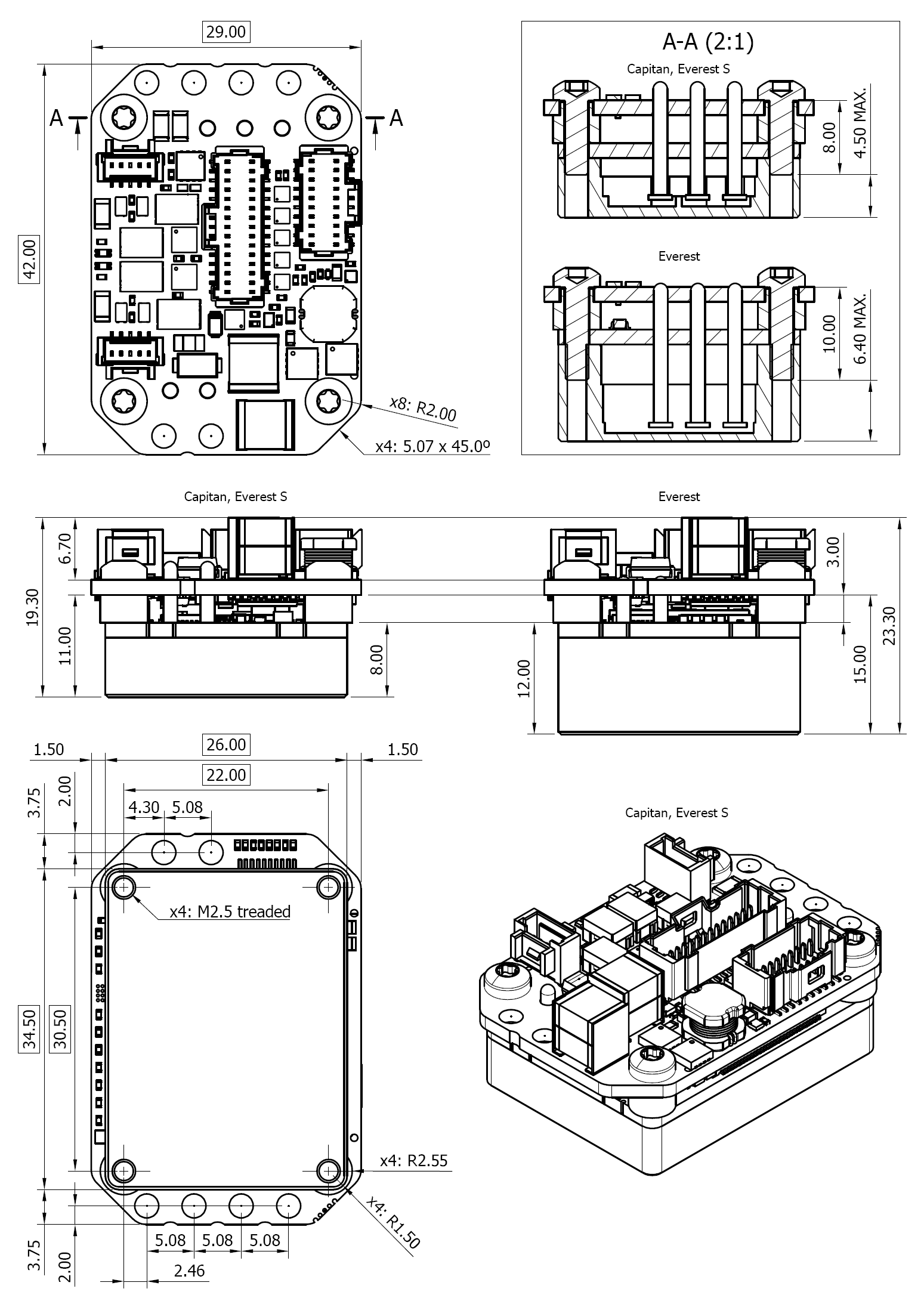

The drawings below show the actual dimensions of the design. Given its compact size, the proposed design does not include other fixing holes than those holding the drive underneath. Hence, the 4 threaded holes in the drive’s metal housing (30.5 mm x 22 mm pattern) must be used to fix the interface board to the drive as well as the drive to the environment. See the Installation chapter for more indications.

All drawings and 3D models can be downloaded here.

Notice both Capitan NET and Everest S share the exact same dimensions, while Everest NET differs only in its body height.

All shown dimensions are in mm. All tolerances are ≤ ±0.2 mm.

The interface board alone (no drive, no fixing elements, no mating connectors or wires) has a weight of 12 g.
